OSFP 400Gbps

OSFP 400Gbps

随着移动互联网、云盘算、大数据等手艺的飞速生长,整个通讯行业也急需把网络从40G升级到100G再到400G 。OSFP和QSFP-DD已经成为400G解决计划的两个现实上的标准 。尊龙在线登录推出400G 产品解决计划,应用于400G以太网、数据中心及下一代云网络 。

P/NProduct DescriptionData Rate (Gbit/s)ReachTXRXPower ConsumptionTemperature (deg C)
FT-OSFP-AOC-xxx 400G OSFP AOC 400G 30m VCSEL PIN <9W (for each end) 0-70/-40~85可选
FT-OSFP-SR8 400G OSFP SR8 400G 100m VCSEL PIN <9W 0-70/-40~85可选
FT-OSFP-2FR4 400G OSFP 2x FR4 400G 2km Uncooled EML PIN <10W 0-70/-40~85可选
FT-OSFP-LR8 400G OSFP LR8 400G 10km Cooled EML PIN <13W 0-70/-40~85可选
FT-OSFP-ER8 400G OSFP ER8 400G coming soon coming soon coming soon coming soon 0-70/-40~85可选
FT-OSFP-ZR8 400G OSFP ZR8 400G coming soon coming soon coming soon coming soon 0-70/-40~85可选
  • - 400G OSFP SR8
  • - 400G OSFP AOC
  • - 400G OSFP 2X FR4
  • - 400G OSFP LR8
  • - 400G QSFP-DD SR8
  • - 400G QSFP-DD SR4
  • - 400G QSFP-DD LR4
  • - 400G QSFP-DD AOC
  • - 400G QSFP-DD FR4
  • - 400G QSFP-DD DR4
  • -100G SFP-DD SR
  • - 100G SFP-DD LR

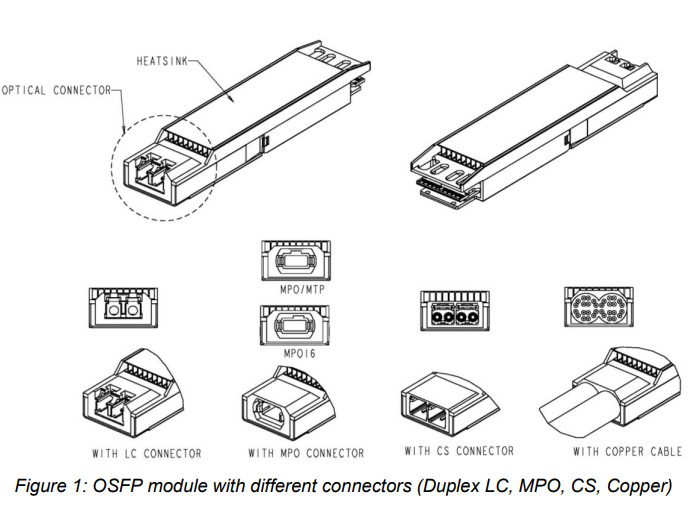

The OSFP is a new pluggable form factor with eight high speed electrical lanes that will initially support 400 Gbps (8x50G). It is slightly wider and deeper than the QSFP but it still supports 32 OSFP ports per 1U front panel, enabling 12.8 Tbps per 1U.

400G Optics require more power than 100G Optics and many of them will not fit into the existing QSFP form factor. Depending on the specific 400G optics technology the initial power projections range from 7.5 Watt to 15 Watt.

The OSFP has an integrated heat-sink that greatly improves thermal performance and enables modules with up to 15W power in a switch chassis with conventional airflow.

Since the OSFP is slightly wider and deeper than the QSFP, it is possible to build an adaptor that supports existing 100G QSFP optics modules in a OSFP cage.

The OSFP is able to meet the projected thermal requirements for 800 Gbps optics when those systems and optics become available in the future.

The OSFP MSA will define the OSFP specification, including the mechanical module, the card cage, the electrical interface, pinout, and management interface.

CDFP 400Gbps

100G QSFP光?

100G QSFP光 ?

100G QSFP光 ?

产品特点
● 切合QSFP28 MSA, IEEE 802.3bm 100GBASE-SR4/LR4/ER4,OTN OTU3/OTU4并行光学链路
● 可热插拨,具备数字诊断和控制能力
● 单电源3.3V供电

100G/400G OSFP

100G/400G OSFP

100G/400G OSFP

F-tone Networks Octal Small Form-factor Pluggable (OSFP) product family is designed based on dual polarization quadrature phase shift keying (DP-QPSK) or dual polarization quadrature amplitude modulation (DP-16QAM) or probabilistic constellation shaping quadrature amplitude modulation (PCS-16QAM), supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization.

200G QSFP光?

200G QSFP光 ?

200G QSFP光 ?

产品特点
● 切合QSFP-56封装并兼容MPO光接口
● 可热插拔,具备数字诊断和控制能力
● 知足EMI、ESD要求

400G 10km OSFP Optical Transceiver

400G 10km OSFP Optical Transceiver

400G 10km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber with FEC. The module has 8 independent electrical input/output channels operating at 53.125Gbps per channel.

400G 2km OSFP FR4 Optical Transceiver

400G 2km OSFP FR4 Optical Transceiver

400G 2km OSFP FR4 Optical Transceiver

Descriptions
FTOS-4H-FR4 transceiver is designed for use in 400Gb/s network applications, the maximum transmission distance is 2km. FTOS-4H-FR4 is a fully integrated optical transceiver modulated using 4-level pulse amplitude modulation (PAM4) format that transmits and receives optical signals with aggregated data rate of 425Gbps over 4 lanes on CWDM wavelength grids each running at 106.25Gbps.

400G 2km OSFP Optical Transceiver

400G 2km OSFP Optical Transceiver

400G 2km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 2Km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel.

400G Duplex LC 2km OSFP Optical Transceiver

400G Duplex LC 2km OSFP Optical Transceiver

400G Duplex LC 2km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 2km single mode fiber with FEC. The module has 8 independent electrical input/output channels operating at 53.125Gbps per channel.

400G MPO12 10km OSFP Optical Transceiver

400G MPO12 10km OSFP Optical Transceiver

400G MPO12 10km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels at host side with data rate 53.125Gbps per channel.

400G MPO12 2km OSFP Optical Transceiver

400G MPO12 2km OSFP Optical Transceiver

400G MPO12 2km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 2km single mode fiber. The module has 8 independent electrical input/output channels at host side with data rate of 53.125Gbps per channel.

400G MPO12 500m OSFP Optical Transceiver

400G MPO12 500m OSFP Optical Transceiver

400G MPO12 500m OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 500m single mode fiber. The module has 8 independent electrical input/output channels at host side with data rate 53.125Gbps per channel.

400G OSFP DR4

400G OSFP DR4

400G OSFP DR4

400G OSFP DR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the OSFP MSA, IEEE 802.3bs and 100G Lambda MSA.The optical transceiver is RoHS compliant.

400G OSFP-RHS SR4 VCSEL 850nm 100m光收发?

400G OSFP-RHS SR4 VCSEL 850nm 100m光收发 ?

400G OSFP-RHS SR4 VCSEL 850nm 100m光收发 ?

产品形貌
尊龙在线登录的400G OSFP-RHS SR4是一款可热插拔的光收发 ?,设计应用于数据中心400G以太网链路,接纳100G PAM4和VCSEL手艺,在系统开启FEC的条件下,可以通过4对多模光纤实现100m以内的425Gbps数据互连 。

400G OSFP-RHS VR4 VCSEL 850nm 50m光收发?

400G OSFP-RHS VR4 VCSEL 850nm 50m光收发 ?

400G OSFP-RHS VR4 VCSEL 850nm 50m光收发 ?

产品形貌
尊龙在线登录的400G OSFP-RHS VR4是一款可热插拔的光收发 ?,设计应用于数据中心400G以太网链路,接纳100G PAM4和VCSEL手艺,在系统开启FEC的条件下,可以通过4对多模光纤实现50m以内的425Gbps数据互连 。

400G OSFP光?

400G OSFP光 ?

400G OSFP光 ?

尊龙在线登录拥有周全的400G OSFP光通讯 ?椴纷楹,包括4x50Gx2和4X100G两种架构计划 。该系列的产品切合IEEE 802.3bs 和OSFP MSA标准,主要应用于400G以太网、数据中心和云网络 。

400G QSFP光?

400G QSFP光 ?

400G QSFP光 ?

产品特点
● 切合QSFP-DD封装并兼容MPO/LC光接口
● 可热插拔,具备数字诊断和控制能力
● 知足EMI、ESD要求

800G 10km PLR8 OSFP Optical Transceiver

800G 10km PLR8 OSFP Optical Transceiver

800G 10km PLR8 OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel.

800G 2xFR4 2km OSFP Optical Transceiver

800G 2xFR4 2km OSFP Optical Transceiver

800G 2xFR4 2km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 2km single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel.

800G 2xLR4 10km OSFP Optical Transceiver

800G 2xLR4 10km OSFP Optical Transceiver

800G 2xLR4 10km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel.

800G DR8 OSFP Optical Transceiver

800G DR8 OSFP Optical Transceiver

800G DR8 OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 500m single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel.

800G DR8+ OSFP Optical Transceiver

800G DR8+ OSFP Optical Transceiver

800G DR8+ OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 2km single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel.

800G Multi mode OSFP AOC Optical Transceiver

800G Multi mode OSFP AOC Optical Transceiver

800G Multi mode OSFP AOC Optical Transceiver

Product Description
F-tone Networks’s OSFP AOC is designed for use in 800 Gigabit Ethernet links over 30m. Each of AOC modules has 8 independent electrical input/output channels operating at 106.25Gbps per channel. Each of AOC modules consists of two transmitter/receiver units.

800G OSFP 2xFR4 光?

800G OSFP 2xFR4 光 ?

800G OSFP 2xFR4

尊龙在线登录自主研爆发产800G OSFP 2xFR4光 ?,已海量交付给工厂自动化、电力、能源、太阳能、风电、水电、火电、核电、国防、军工、航空、航天、武器、舰船、雷达、电子、核工业、军事、铁路、医疗、交通、通讯、电信、政府、信创、国防科技工业系统内大专院校及科研院所

800G OSFP 2xLR4 光?

800G OSFP 2xLR4 光 ?

800G OSFP 2xLR4 光 ?

800G OSFP 2xLR4 transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the OSFP MSA and 100G Lambda MSA.The optical transceiver is RoHS compliant.

800G OSFP AOC(1~100m)

800G OSFP AOC(1~100m)

800G OSFP AOC(1~100m)

产品形貌
尊龙在线登录的800G OSFP AOC有源光缆用于数据中心内部装备之间的短距离互连,切合IEEE 800GBASE-SR8传输协议 。该系列产品使用8对并行的多模光纤传输,距离最高可达60m(OM3)或100m(OM4) 。

800G OSFP DR8+ 光?

800G OSFP DR8+ 光 ?

800G OSFP DR8+ 光 ?

800G OSFP DR8+ transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the OSFP MSA, and IEEE 802.3cu.The optical transceiver is RoHS compliant.

800G OSFP DR8++ 光?

800G OSFP DR8++ 光 ?

800G OSFP DR8++ 光 ?

800G OSFP DR8++ transceiver modules are designed for use in 800 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the OSFP MSA, and IEEE 802.3cu.The optical transceiver is RoHS compliant.

800G OSFP PCC(0.5~2m)

800G OSFP PCC(0.5~2m)

800G OSFP PCC(0.5~2m)

产品形貌
尊龙在线登录的800G OSFP PCC无源直接铜缆用于数据中心内部的机架内或机架间的互连,切合IEEE 802.3ck 800GBASE-CR8以太网传输协议,同时兼容InfiniBand NDR传输协议 。该系列产品使用16对同轴电缆传输8x 100G PAM4信号,距离最高可达1m(30AWG)或2m(26AWG) 。

800G OSFP112 SR8 VCSEL 850nm 100m光收发?

800G OSFP112 SR8 VCSEL 850nm 100m光收发 ?

800G OSFP112 SR8 VCSEL 850nm 100m光收发 ?

产品形貌
尊龙在线登录的800G OSFP112 SR8是一款可热插拔的光收发 ?,设计应用于数据中心800G SR8以太网链路,接纳100G PAM4和VCSEL手艺,可以实现100m以内的800G数据互连 。

800G OSFP112 VR8 VCSEL 850nm 50m光收发?

800G OSFP112 VR8 VCSEL 850nm 50m光收发 ?

800G OSFP112 VR8 VCSEL 850nm 50m光收发 ?

产品形貌
尊龙在线登录的800G OSFP112 VR8是一款可热插拔的光收发 ?,设计应用于数据中心800G以太网链路,接纳100G PAM4和VCSEL手艺,可以实现50m以内的800G数据互连 。

800G OSFP光?

800G OSFP光 ?

800G OSFP光 ?

尊龙在线登录800G OSFP光 ?榘4x100Gx2和8X100G两种架构计划,除了古板的EML设计,还接纳了以硅光为基础的计划来知足短距离传输需求 。该系列的产品切合IEE802.3ck和OSFP MSA标准,并支持CMIS4.0 。产品主要应用于800G以太网、数据中心和云网络 。

800G SR8 OSFP Optical Transceiver

800G SR8 OSFP Optical Transceiver

800G SR8 OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP 800G transceiver module is designed for use in 800 Gigabit Ethernet links over 60m OM3 or 100m OM4 fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel.

800G, 2km, 2×400G or 8×100G OSFP With Dual MPO-12 interface

800G, 2km, 2×400G or 8×100G OSFP With Dual MPO-12 interface

800G, 2km, 2×400G or 8×100G OSFP With Dual MPO-12 interface

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 2km single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel.

800G, 2×400G or 8×100G OSFP With Dual MPO-12 interface

800G, 2×400G or 8×100G OSFP With Dual MPO-12 interface

800G, 2×400G or 8×100G OSFP With Dual MPO-12 interface

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 500m single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel.

800G,2km,2×400G or 8×100G OSFP With Dual CS interface

800G,2km,2×400G or 8×100G OSFP With Dual CS interface

800G,2km,2×400G or 8×100G OSFP With Dual CS interface

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 2km single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel.

OSFP112 400G SR4 Optical transceiver for(dual MPO)flat top solution

OSFP112 400G SR4 Optical transceiver for(dual MPO)flat top solution

OSFP112 400G SR4 Optical transceiver for(dual MPO)flat top solution

Product Description
This product is a 400Gb/s OSFP112 400G SR4 opticalmodule designed for 100m optical communication applications. The module converts 4 channels of100Gb/s (PAM4) electrical input data to 4 channelsof parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s.
